Creating a note

Developer quick-sheet · hand-written notes in docs/notes/ · version 8, 21 October 2026

Two routes. Markdown, like a student note (the simpler one, and what Note 9 used): copy notes/src/_template.md to notes/src/your-note-name.md, write it as student guide 3 says, keep id: "TBD", check it with python tools/check_note.py notes/src/your-note-name.md, and open the PR. The page and the index row are built when you merge it, and you give it its number then (see the box at the bottom), so there is no NN to track: skip the steps below. Hand-written HTML, for a page the Markdown build cannot make: an HTML page in docs/notes/ and one row in the front-page table, as follows. Start from develop, on a branch: git switch -c feature/note-short-name, with a name for the topic, for example feature/note-psd-peaks. Leave the number out of the branch name and do not look it up yet (the shared numbers are taken as notes are merged, so one found now may be gone by the time you finish). You pick NN, the note number, at step 6.

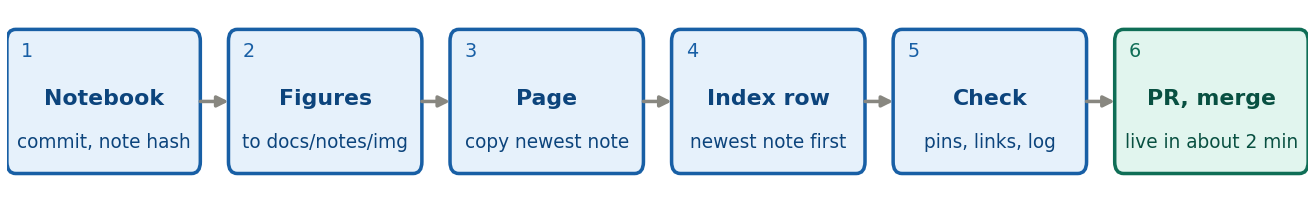

1. Notebook. Do the analysis in data_analysis/R76/notebooks/, run it top to bottom, and commit it with any library change. Note the short hash: git rev-parse --short HEAD. Re-running some notebooks leaves metadata churn, so read git diff before committing. Never run 07221203_2025_dump1_noise.ipynb without approval (it rewrites data_analysis/archives/good_noise.h5).
2. Figures. Save the PNGs from the executed notebook into docs/notes/img/, named for the series and the content, for example dump1_bstd_time.png.
3. Page. Copy the newest note, note-02a-bstd-vs-time.html, to docs/notes/note-NN-slug.html, writing the letters NN literally for now. Edit the <title>, the <h1> (write it as a question), the meta line (Note NN · Author(s) · date · Status; keep NN for now), and the <nav class="outline"> with an id on every <h2>. Sections: Code Repository, Data and setup, The question, then the headings your story needs (one section per result with a <figure>, alt text and a caption; what it means and what could be wrong; next steps). Student guide 3 shows three notes with their headings.
4. Pin the code. Every link to a notebook or to python/ uses the commit hash, never a branch name: under the repository URL, blob/<hash>/<path> for a file and tree/<hash>/<folder> for a folder. Check each one: git cat-file -e <hash>:<path> prints nothing when the file exists.
5. Index row. Add one <tr> to the Analysis Notes table in docs/index.html, newest note first. Columns: Note # (NN for now), Link, Date, Author, Title, Description, Keywords, Status. The status badge is <span class="status in-progress"> (or complete, superseded, abandoned, brainstorm).
6. Take the number. Last, just before the PR: git fetch and git merge origin/develop to bring in any notes merged meanwhile, then python tools/build_notes.py next, which prints the next free number (student notes share the numbering; a follow-up takes a letter, like 2a). Replace NN with it in the file name, the meta line and the index row. If someone merges a note first, repeat this step: only the number changes.
7. Changelog and checks. Add a line under [Unreleased] in CHANGELOG.md (a new note is a patch-level change). Open the page from disk in a browser: figures show, links work. If you touched python/, run cd python && python -m pytest -q.
8. PR. git push -u origin feature/note-short-name, then gh pr create --base develop --fill. When the checks are green, merge: the page is live in about two minutes.

Updating a note is the same loop, on a new branch from develop. Check its status first: a Complete note is left alone (a follow-up takes a letter, like 2a after 2), an In progress note can change freely, and a note that a later one replaces becomes Superseded (reference/link) with a link to the newer one. If you re-ran anything, re-pin the links to the new hash and replace the PNGs. Update the date and status in the page’s meta line and in its row of docs/index.html (the row is hand-edited, so the two can drift). A wrong result stays in the note, corrected and dated; never delete a published note.

Rules. A Complete note gets only a minimal correction, and only when a library rename makes it wrong. A breaking library change means updating the notebooks that use it, or marking them deprecated (the red box described on the front page). Any whole-trace spectrum must skip the leading glitch samples. A segment is a run of same-trigger events; a run is a whole data-taking period.
